Circular Plates

Stresses and Strains in loaded Circular Plates and Rings.

View other versions (6)

Contents

Circular Plates Symmetrically Loaded.
Solid Circular Plate
Annular Ring , Loaded Around The Inner Edge
Page Comments

Circular Plates Symmetrically Loaded.

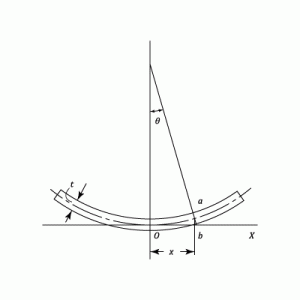

Consider a Diametral Section through a plate of thickness $\inline t$ . $\inline O$ is the centre of the plate and $\inline OX$ and $\inline OY$ are the principal axes in the plane of the diagram. The axis $\inline OZ$ is perpendicular to the screen.

MISSING IMAGE!

23287/Circular-Plates-0001.png cannot be found in /users/23287/Circular-Plates-0001.png. Please contact the submission author.

Let $\inline C$ be the Centre of Curvature of a section $\inline ab$ at a distance $\inline x$ from $\inline O$ . Then if the deflection $\inline y$ is small:

$\frac{dy}{dx}=\theta$

(2)

The radius of curvature in the plane $\inline XOY$ is given by: $\inline \displaystyle\frac{1}{R_{xx}}=\displaystyle\frac{d^2y}{dx^2}$ (Approximately)

Thus from equation (2)

$\frac{1}{R_{xx}}=\frac{d\theta }{dx}$

(3)

Note that, on a circle of radius $\inline x$ and centre $\inline O$ , lines such as $\inline ab$ form part of a cone with $\inline C$ as the apex. Hence $\inline C$ is the Centre of Curvature in the plane $\inline YOZ$ and:

$\frac{1}{R_{yx}} = \frac{\theta }{x}$

(4)

(Approximately)

If $\inline u$ is the distance of any "fibre" from the neutral axis (which is assumed to be central) then proceeding as for "Pure Bending" in the planes $\inline XOY$ and $\inline YOZ$ the linear Strains are:

$e_x=\frac{u}{R_{xy}} = \left(\frac{1}{E} \right)\left(f_x - \frac{f_z}{m} \right)$

(5)

And,

$e_z=\frac{u}{R_{xy}} = \left(\frac{1}{E} \right)\left(f_z - \frac{f_x}{m} \right)$

(6)

Where $\inline f_x$ and $\inline f_y$ are the Stresses in the directions $\inline OX$ and $\inline OZ$ , $\inline f_y$ is zero

Solving equations (5) and (6) for the Stresses and incorporating equations (3) and (4) gives:

$f_x=\frac{E\;u}{1-\displaystyle\frac{1}{m^2}}\left(\frac{1}{R_{xy}} + \frac{1}{m\;R_{yz}} \right)=\frac{E\;u}{1 - \displaystyle\frac{1}{m^2}}\left(\frac{d\theta }{dx} + \frac{\theta }{m\;x} \right)$

(7)

$f_z = \frac{E\;u}{1 - \displaystyle\frac{1}{m^2}}\left(\frac{1}{m\;R_{xy}} + \frac{1}{R_{yz}} \right) = \frac{E\;u}{1 - \displaystyle\frac{1}{m^2}}\left(\frac{1}{m}\times\frac{d\theta }{dx} + \frac{\theta }{x} \right)$

(8)

The Bending Moment per unit length along $\inline OZ$ is $\inline \displaystyle M_{xy}$ which is given by:

$M_{xy}\times dz = \int_{-\frac{t}{2}}^{\frac{t}{2}}{f_x\times u\;dz\times du}$

$\therefore\;\;\;\;\;M_{xy}=D\left(\frac{d\theta }{dx} + \frac{\theta }{m\,x} \right)$

(9)

By substitution from equation (7)

$D = \frac{E\;t^3}{12\left(1 - \frac{1}{m^2} \right)}$

(10)

Similarly if $\inline M_{yz}$ is the Bending Moment per unit length about $\inline OX$ then:

$M_{yz}\times dx = \int_{-\frac{t}{2}}^{\frac{t}{2}}{f_z\times u\,dx\times du}$

Using equation (8)

$M_{yz} = D\left[\left(\frac{1}{m} \right)\left(\frac{d\theta }{dx} \right) + \frac{\theta }{x} \right]$

(11)

Note that:

$f_x=M_{xy}\times \frac{12u}{t^3}$

(12)

$f_z=M_{yz}\times \frac{12u}{t^3}$

The diagram shows the Forces and Moments per unit length acting on an element which subtends an angle $\inline \delta \phi$ at the centre. $\inline F$ is the Shearing Force per unit length in the direction of $\inline OZ$ .

MISSING IMAGE!

23287/Circular-Plates-0002.png cannot be found in /users/23287/Circular-Plates-0002.png. Please contact the submission author.

Now consider the equilibrium of the Couples in the Central Radial Plane.

i.e., $\inline \left(M_{xy} + \delta M_{xy} \right)\left(x + \delta x \right)\delta \phi - M_{xy}\times x\delta \phi - 2M_{yz}\times \delta x\times \sin\displaystyle\frac{1}{2}\delta \phi +f\;x\;\delta \phi \times \delta x = 0$

Which in the Limit reduces to:

$M_{xy} + x\times \frac{\delta M_{xy}}{dx} - M_{yz} + Fx = 0$

Substituting from Equations (9) and (11) gives:

$\frac{d^2\theta }{dx^2} + \left(\frac{1}{x} \right)\left(\frac{d\theta }{dx} \right) - \frac{\theta }{x^2} = - \frac{F}{D}$

This can be written as:

$\left(\frac{d}{dx} \right)\left[\left(\frac{1}{x} \right)\times \frac{d(x\theta )}{dx} \right]\;= - \frac{F}{D}$

(13)

If $\inline F$ is known as a function of $\inline x$ , this equation can be integrated to determine $\inline \theta$ and hence $\inline y$ . Bending Moments and Stresses can then be calculated.

Particular Case

A Plate Loaded with Uniformly distributed load of $\inline w$ per unit Area and a Concentrated load at Centre of $\inline P$ .

$2\pi \,x\times F = \pi x^2\times w + P$

$\therefore\;\;\;\;\;\;\;F = \frac{w\,x}{2} + \frac{P}{2\pi \;x}$

Per unit length of circumferentially (Except at $\inline x = 0$ )

Substituting in Equation (13) and Integrating:

$\theta \;= - \frac{w\;x^3}{16\;D} - \left(\frac{P\;x}{8\pi \;D} \right)\left(2\ln x - 1 \right) + \frac{C_1\,x}{2} + \frac{C_2}{x}$

(14)

But From Equation (2)

$y=\int \theta \;dx + C_3$

$\therefore\;\;\;\;\;y\;= - \frac{w\;x^4}{64\;D} - \left(\frac{P\;x}{8\pi \;D} \right)\left(2\ln x - 1 \right) + \frac{C_1\;x}{4} + C_2\;\ln x + C_3$

(15)

Example:

Example - A particular case

Problem

A Plate Loaded with Uniformly distributed load of w per unit Area and a Concentrated load at Center of P.

Workings

$2\pi \,x\times F\;=\;\pi x^2\times w\;+\;P$

(1)

$\therefore\;\;\;\;\;\;\;F\;=\;\frac{w\,x}{2}\;+\;\frac{P}{2\pi \;x}$

(2)

Per unit length of circumferentially (Except at x = 0)

Substituting in Equation (#19) and Integrating:

$\theta \;=\;-\;\frac{w\;x^3}{16\;D}\;-\;\left(\frac{P\;x}{8\pi \;D} \right)\left(2\ln x\;-\;1 \right)\;+\;\frac{C_1\,x}{2}\;+\;\frac{C_2}{x}$

(3)

But From Equation (#1)

$y=\int \theta \;dx + C_3$

(4)

$\therefore\;\;\;\;\;y\;=\;-\;\frac{w\;x^4}{64\;D}\;-\;\left(\frac{P\;x}{8\pi \;D} \right)\left(2\ln x\;-\;1 \right)\;+\;\frac{C_1\;x}{4}\;+\;C_2\;\ln x\;+\;C_3$

(5)

Solid Circular Plate

Let the radius of the plate be $\inline R$ and the thickness $\inline t$ .

Uniformly Loaded, Edge Freely Supported

$\inline P=0$ and since $\inline \theta$ and $\inline y$ can not be infinite at the centre, then $\inline C_2=0$ from Equation (14) at $\inline x = 0$ , $\inline y = 0$ , and therefore $\inline C_3=0$ from equation (15).

Using equations (9) and (14). At $\inline x=R$ , $\inline M_{xy}=0$ therefore

$-\frac{3\,w\,R^2}{16 D} + \frac{C_1}{2} - \frac{w\,R^2}{16 D\,m} + \frac{C_1}{2 m} = 0$

Thus,

$C_1=\left(\frac{w\,R^2}{8\,D} \right)\left(\frac{3+\displaystyle\frac{1}{m}}{1+\displaystyle\frac{1}{m}} \right)$

Central Deflection = $\inline y$ at $\inline x=R$ . Thus,

$y=\frac{w\;R^4}{64\,D} + \frac{w\,R^4}{32 D}\times \frac{3 + \displaystyle\frac{1}{m}}{1 + \displaystyle\frac{1}{m}} = \frac{w\;R^4}{64\;D}\left(\frac{5 + \displaystyle\frac{1}{m}}{1 + \displaystyle\frac{1}{m}} \right)$

Eliminating $\inline D$ by substitution from Equation (10)

$=\left(\frac{3\,w\,R^4}{16\,E\,t^3} \right)\left(5 + \frac{1}{m} \right)\left(1 - \frac{1}{m} \right)$

From Equation (7)

$f_x = \frac{E\;u}{1 - \displaystyle\frac{1}{m^2}}\left(- \frac{w\,x^2}{16\,D}\times \left\{3 - \frac{1}{m} \right\} + \frac{w\;R^2}{16\,D}\left\{3 + \frac{1}{m} \right\} \right)$

And at $\inline x=0$

$\hat{f}=\frac{E\times \displaystyle\frac{t}{2}}{1 - \displaystyle\frac{1}{m^2}}\times \frac{w\;R^2}{16 D}\left(3 + \displaystyle\frac{1}{m} \right)=\frac{3w\;R^2\left(3 + \displaystyle\frac{1}{m} \right)}{8 t^2}$

From Equation (8)

$f_z = \frac{E\;u}{1 - \displaystyle\frac{1}{m^2}}\left(- \frac{w\,x^2}{16\;D}\left\{\frac{3}{m} + 1 \right\} + \frac{w\;R^2}{16\;D}\left\{3 + \frac{1}{m} \right\}\right)$

As above when $\inline x=0$ , $\inline f_z=\hat{f_z}$ . Therefore $\inline \hat{f_x}=\hat{f_z}$

Note: the Maximum Stresses occur at the centre.

Uniformly Loaded With The Edge Clamped

As in the last case, $\inline P=0$ and $\inline C_2=0$ at $\inline x=0$ , $\inline y=0$ . Therefore $\inline C_3=0$ from equation(15)

Structural loads or actions are forces, deformations or accelerations applied to a structure or its components.Loads cause stresses, deformations and displacements in structures.

At $\inline x=R$ , $\inline \displaystyle\frac{dy}{dx}=\theta =0$

i.e. from Equation (14), $\inline -\displaystyle\frac{w\;R^3}{16\;D} + C_1\times \displaystyle\frac{R}{2} = 0$

$\therefore\;\;\;\;\;\;C_1 = \frac{w\;r^2}{8\;D}$

Using Equation (15),Central Deflection = $\inline -\displaystyle\frac{w\;r^4}{64\;D} + \displaystyle\frac{w\;R^4}{32\;D} = \displaystyle\frac{w\;R^4}{64\;D}$

Eliminating $\inline D$ by using equation (10)

$=\left(\frac{3\,w\;R^4}{16\;E\;t^3} \right)\left(1 - \frac{1}{m^2} \right)$

From Equation (7)

$f_x = \left(\frac{E\;u}{1 - \displaystyle\frac{1}{m^2}} \right)\left(- \frac{w\;x^2}{16\;D}\left\{3 + \frac{1}{m} \right\} + \frac{w\;R^2}{16\;D}\left\{1 + \frac{1}{m} \right\} \right)$

This Stress has its greatest numerical value when $\inline x = R$ ( i.e. at the clamped edge), thus

$\hat{f_x}=\frac{E\times \displaystyle\frac{t}{2}}{1 - \displaystyle\frac{1}{m^2}}\times \frac{w\;R^2}{16\;D}\times 2=\frac{3\;w\;R^2}{4\;t^2}$

From Equation (8)

$f_z=\frac{E\;u}{1 - \displaystyle\frac{1}{m^2}}\left(\frac{- w\;x^2}{16\,D}\left\{\frac{3}{m} + 1 \right\} + \frac{w\;R^2}{16\;D} \left\{1+\frac{1}{m} \right\}\right)$

From which, $\inline \hat{f_z} = \displaystyle\frac{E\times\displaystyle\frac{t}{2}}{1 - \displaystyle\frac{1}{m^2}}\times \displaystyle\frac{w\;R^2}{16\;D}\times \left(1 + \displaystyle\frac{1}{m} \right)= \displaystyle\frac{3\;w\;R^2(1 + \displaystyle\frac{1}{m})}{8\;t^2}$ (At the Centre)

Central Load P, Edge Freely Supported (w=0)

At $\inline x=0$ , $\inline \theta=0$ therefore from equation (14) $\inline C_2=0$ and $\inline y=0$ . From equation(15) $\inline C_3=0$

Note: $\inline (L\times t\times (x\;\ln x)=0)$

At $\inline x=R$ , $\inline M_{xy}=0$ do from equation (9)

$-\left(\frac{P}{8\;\pi \;D } \right)\left(2\;\ln\,R - 1 \right)\;\left(\frac{P\;R}{8\pi D} \right)\left(\frac{2}{R} \right) + \frac{C_1}{2} -$

$- \left(\frac{P}{8\pi \;D\;m} \right)\left(2\;\ln R - 1 \right) + \frac{C_1}{2\,m} = 0$

From which, $\inline c_1 = \displaystyle\frac{P}{4\pi \,D}\left(2\,\ln R + \displaystyle\frac{1 - \displaystyle\frac{1}{m}}{1 + \displaystyle\frac{1}{m}} \right)$

Thus, Central deflection

$= \frac{P\,R^2}{8\pi \,D}\left(\ln R - 1 \right) + \frac{P\;R^2}{16\pi \,D}\left(2\,\ln R + \frac{1 - \displaystyle\frac{1}{m}}{1 + \displaystyle\frac{1}{m}} \right)$

$=\frac{P\;R^2}{16\pi \,D}\times \frac{(3 + \displaystyle\frac{1}{m})}{(1 + \displaystyle\frac{1}{m})}=\frac{3P\;R^2}{4\pi\;E\;t^3}\times \left( 3 +\frac{1}{m} \right)\left(1 - \frac{1}{m} \right)$

From Equation (7)

$f_x = \frac{E\;u}{1 - \frac{1}{m^2}}\times \frac{P}{4\pi \,D}\left(1 + \frac{1}{m} \right)\ln\frac{R}{x}$

$=\left(\frac{3P}{2\pi \,t^2} \right)\left(1 + \frac{1}{m} \right)\ln\frac{R}{x}$

Note: $\inline u=\displaystyle\frac{t}{2}$

And from equation (8),

$f_z =\left(\frac{3P}{2\pi \,t^2} \right)\left[\left(1 + \frac{1}{m} \right)\ln\frac{R}{x} + 1 - \frac{1}{m} \right]$

These Stresses appear to become infinite at the centre, but it must be realised that the load can not be applied at a point but must extend over a finite area. If this area can be estimated then the maximum Stresses can be obtained.

Loaded Round A Circle, Edge Freely Supported

Let a total load $\inline P$ be distributed around a circle of radius $\inline r$ .

MISSING IMAGE!

23287/Circular-Plates-0001-1.png cannot be found in /users/23287/Circular-Plates-0001-1.png. Please contact the submission author.

It is necessary to divide the plate into two regions, one for $\inline x < r$ and the other for $\inline x > r$ . At $\inline x = r$ the values of $\inline \theta$ , $\inline y$ and $\inline M_{xy}$ must be the same for both regions.

If $\inline x<r$ , $\inline w=0$ and $\inline P=0$

Hence, from Equation (14) $\inline \theta = \displaystyle\frac{C_1 x}{2} + \displaystyle\frac{C_2}{x}$ . And from Equation (15), $\inline y=\displaystyle\frac{C_1 x^2}{4} + C_2\;\ln x + C_3$

Since $\inline \theta$ and $\inline y$ are not infinite at $\inline x=0$ then $\inline C_2=0$ , and since $\inline y=0$ when $\inline x=0$ and $\inline C_3=0$ , then above equations reduce to: $\inline \theta =\displaystyle\frac{C_1 x}{2}$ And, $\inline y=\displaystyle\frac{C_1\;x^2}{4}$

If $\inline x>r$ and $\inline w=0$

From Equation (14), $\inline \theta =-\left(\displaystyle\frac{P x}{8\pi D} \right )\left(2 \ln x-1 \right) + \displaystyle\frac{C_1'x}{2} + \displaystyle\frac{C_2'}{x}$

And from Equation (15),

$y=-\left(\frac{P\;x^2}{8\pi \;D} \right)\left(\ln x - 1 \right) + \frac{C_1'x^2}{2} + C_2'\;\ln {x} + C_3'$

Equating the values of $\inline \theta$ and $\inline M_{xy}$ at $\inline x=r$ gives the following equations:

$-\left(\frac{P\,r}{8\pi \;D} \right)\left(2\;\lnr - 1 \right) + \frac{C_1'\;r}{2} + \frac{C_2'}{r} = \frac{C_1\;r}{2}$

(16)

$-\left(\frac{P\,r^2}{8\pi \;D} \right)\left(\ln r - 1 \right) + \frac{C_1'\;r^2}{4} + C_2'\;\ln r = \frac{C_1\;r^2}{4}$

And,

$\left(\frac{P}{8\pi \;D} \right)\left[\left(1 + \frac{1}{m} \right)2\;\ln r + 1 -\frac{1}{m} \right]\:+\;\left(\frac{C_1'}{2} \right)\left(1 + \frac{1}{m} \right) -$

$-\left(\frac{C_2'}{r^2} \right)\left(1 - \frac{1}{m} \right)=\left(\frac{C_1}{2} \right)\left(1 + \frac{1}{m} \right)$

$\inline M_{xy}=0$ at $\inline x=R$ gives:

$\left(\frac{P}{8\pi D} \right)\left[\left(1 + \frac{1}{m} \right)2\;\ln R + 1 - \frac{1}{m} \right] + \left(\frac{C_1'}{2} \right)\left(1 + \frac{1}{m} \right) - \left(\frac{C_2'}{R^2} \right)\left(1 - \frac{1}{m} \right) =0$

(17)

From Equations (16) to (17) the constants are found to be:

$C_1'=\frac{P}{4\pi \;D}\left[2\;\lnR + \frac{R^2 - r^2}{R^2}\left(\frac{1 - \displaystyle\frac{1}{m}}{1 + \displaystyle\frac{1}{m}} \right) \right]$

$C_2'=-\frac{P\;r^2}{8\pi \;D}$

$C_3'=\frac{P\;r^2}{8\pi \;D}\left(\ln r - 1 \right)$

The Central Deflection is given by the value of $\inline y$ at $\inline x = R$ and by substitution equation (15) reduces to:

$y=\left(\frac{P}{8\pi \;D} \right)\left[\left(R^2 - r^2 \right)\times \frac{\left(3 + \displaystyle\frac{1}{m} \right)}{2\left(1 + \displaystyle\frac{1}{m} \right)} -r^2\;\ln\frac{R}{r} \right]$

For $\inline x>r$

$M_{xy} = \left(\frac{P}{8\pi \right)\left[\left(1 + \frac{1}{m} \right)2\;\ln x + \left(1 + \frac{1}{m} \right)\times r^2\left(\frac{1}{x^2} - \frac{1}{R^2} \right)\right]}$

Which has a maximum value at $\inline x = r$

Hence from equation (12)

$\hat{f}=\left(\frac{6}{t^2} \right)\;M_{xy}$

$=\left(\frac{3\;P}{4\pi \;t^2} \right)\left[\left(1 + \frac{1}{m} \right)2\;\ln\frac{R}{r} + \left(1 - \frac{1}{m} \right)\left(\frac{R^2\;-r^2}{R^2} \right) \right]$

Similarly:

$M_{yz}=\left(\frac{P}{8 \pi } \right)\left\{ \left(1 + \frac{1}{m} \right)2 \ln\frac{R}{x} + \left(1 - \frac{1}{m} \right)\left[\frac{2R^2 -r^2}{R^2} - \frac{r^2}{x^2}\right] \right\}$

$\hat{f_z}=\left(\frac{3 P}{4\pi \;t^2} \right)\left[\left(1 + \frac{1}{m} \right)2 \ln\frac{R}{r} + \left(1 - \frac{1}{m} \right)\left(\frac{R^2 -r^2}{R^2} \right) \right]=f_x$

Annular Ring , Loaded Around The Inner Edge

MISSING IMAGE!

23287/Circular-Plates-0004.png cannot be found in /users/23287/Circular-Plates-0004.png. Please contact the submission author.

The ring is loaded with a total load $\inline P$ around the inner edge and is freely supported around the outer edge. $\inline M_{xy}=0$ at $\inline x=R$ and at $\inline x=r$ .

$-\left(\frac{P}{8\pi D} \right)\left[\left(1 + \frac{1}{m} \right)2\;\ln R + 1 - \frac{1}{m} \right] + \left(\frac{C_1}{2} \right)\left(1 + \frac{1}{m} \right) -$

$-\left(\frac{C_2}{R^2} \right)\left(1 - \frac{1}{m} \right) = 0$

And,

$- \left(\frac{P}{8\pi D} \right)\left[\left(1 + \frac{1}{m} \right)2 \ln r + 1 - \frac{1}{m} \right] + \left(\frac{C_1}{2} \right)\left(1 + \frac{1}{m} \right) -$

$-\left(\frac{C_2}{r^2} \right)\left(1 - \frac{1}{m} \right) = 0$

Subtracting and solving:

$C_2=\frac{P}{4\pi D}\times \frac{1 + \displaystyle\frac{1}{m}}{1 - \displaystyle\frac{1}{m}}\times \frac{R^2 r^2}{R^2 - r^2}\times \ln \frac{R}{r}$

And then

$C_1=\frac{P}{4\pi D}\left[\frac{2(R^2 \ln R - r^2 \ln r)}{R^2 - r^2} + \frac{1 -\displaystyle\frac{1}{m}}{1 + \displaystyle\frac{1}{m}} \right]$

Then,

$\frac{M_{xy}}{D} = -\left(\frac{P}{8\pi D} \right)\left[\left(1 + \frac{1}{m} \right)2 \ln x + 1-\frac{1}{m} \right] + \left(\frac{C_1}{2} \right)\left(1 + \frac{1}{m} \right) - \left(\frac{C_2}{x^2} \right)\left(1 + \frac{1}{m} \right)$

$\frac{M_{yz}}{D}\;= - \left(\frac{P}{8\pi D} \right)\left[\left(1 + \frac{1}{m} \right)2\;\ln x - \left(1 +\frac{1}{m} \right) \right] + \left(\frac{C_1}{2} \right)\left(1 + \frac{1}{m} \right) - \left(\frac{C_2}{x^2} \right)\left(1 + \frac{1}{m} \right)$

The maximum Bending Moment is $\inline M_{yz}$ at $\inline x=r$ , therefore

$\hat{f_z}=\left(\frac{6}{t^2} \right)\;M_{yz}=\frac{3\;P}{\pi \;t^2}\times \frac{\left(1 + \displaystyle\frac{1}{m} \right)}{R^2 - r^2}\times \ln\frac{R}{r}$
