Introduction
Discs Of Uniform Thickness.
A Solid Disc
A Disc With A Central Hole
Long Cylinders
Solid Cylinder
A Disc Of Uniform Strength
Page Comments

Introduction

The rotation of a fast moving disc or cylindrical member can set up axial, circumferential and radial stresses. For instance, in the turbine section of an aircraft gas turbine engine, the rotor disc frequently turns at speeds in the region of 10000 r.p.m. This generates large amounts of stresses and strains on the material of the rotor disc. Similar loads are bourne by the cylindrical turbine rotor shafts that transmit the rotational movement from the turbine to the compressor section. To design a disc or shaft that can withstand these stresses without catastrophic failure in flight, it is important to understand the loads acting on them.

This section analyses the stress and strains acting on rotating discs and cylinders.

MISSING IMAGE!

23573/800px-turbofan_operation_lbp_svg.png cannot be found in /users/23573/800px-turbofan_operation_lbp_svg.png. Please contact the submission author.

Discs Of Uniform Thickness.

For a "thin" disc it can be assumed that the Stress in the Axial direction is zero. Due to the rotation of the disc, Circumferential $\inline \displaystyle f$ (Hoop) and radial $\inline \displaystyle p$ Stresses will occur. Both these Stresses are Tensile. If the radial shift at a radius $\inline r$ is $\inline u$ , then the Strain Equations are:

$E\times \frac{du}{dr} = p - \frac{f}{m}$

(2)

$And\;\;\;\;\;E\times \frac{u}{r} - \frac{f}{m}$

(3)

Differentiating equation (2) and equating it to equation (1) gives:

$\left(f - p \right)\left(1 - \frac{1}{m} \right) + r\times \frac{df}{dr} - \left(\frac{r}{m} \right)\left(\frac{dp}{dr} \right) = 0$

(4)

MISSING IMAGE!

23287/Rotating-Discs-and-Cylinders-3-0001.png cannot be found in /users/23287/Rotating-Discs-and-Cylinders-3-0001.png. Please contact the submission author.

If the angular velocity of rotation is $\inline \displaystyle \omega$ and the density of the disc material is $\inline \displaystyle \rho$ , then the element shown in the diagram is subjected to a centrifugal force:

$\left(\frac{\rho r\,\delta \theta \times \delta r}{g} \right)\times r\;\omega ^2$

(5)

Which for unit thickness:

$\left(\frac{\rho r\,\delta \theta \times \delta r}{g} \right)\times r\;\omega ^2$

(6)

$= \frac{\rho \,r^2\,\omega ^2\;\delta r\times \delta \theta }{g}$

(7)

The equilibrium equation in the radial direction is:

$2f\,\delta r\,\sin\frac{1}{2}\,\delta \theta + \rho r\,\delta \theta - (p + \delta p)(r + \delta r)\delta \theta = \frac{\rho \,r^2\,\omega ^2\;\delta r\times \delta \theta }{g}$

(8)

In the limit this equation reduces to:

$f - p - r\,\frac{dp}{dr} = \frac{\rho \,r^2\;\omega ^2}{g}$

(9)

From equation (8) obtain $\inline \displaystyle f - p$ and substitute into equation (3)

$\left(r\,\frac{dp}{dr} + \frac{\rho \,r^2\,\omega ^2}{g} \right)\left(1 - \frac{1}{m} \right) + r\times \frac{df}{dr} - \left(\frac{r}{m} \right)\frac{dp}{dr} = 0$

(10)

Rearranging:

$\frac{df}{dr} + \frac{dp}{dr}\;= - \left(\frac{\rho \.r\,\omega ^2}{g} \right)\left(1 + \frac{1}{m} \right)$

(11)

Integrating:

$f + p\;= - \left(\frac{\rho \,r^2\,\omega ^2}{2g} \right)\left(1 + \frac{1}{m} \right) + 2A$

(12)

Subtracting equation (8)

$2p + r\,\frac{dp}{dr}= - \left(\frac{\rho \,r^2\,\omega ^2}{2g} \right)\left(3 + \frac{1}{m} \right) + 2A$

(13)

$\therefore\;\;\;\;\;\frac{1}{r}\;\frac{d(p\,r)^2}{dr}\;= - \frac{\rho \,r^2\,\omega ^2(3 + 1/m)}{2g} + 2A$

(14)

Integrating:

$p\,r^2\;= - \frac{\rho \,r^4\,\omega ^2(3 + 1/m)}{8g} + 2A\,r^2 - B$

(15)

$Or\;\;\;\;\;\;\mathbf{p = A - \frac{B}{r^2} - \left(3 + \frac{1}{m} \right)\left(\frac {\rho \,r^2\;\omega ^2}{8g} \right)}$

(16)

Substituting from equation (11)

$\mathbf{f = A + \frac{B}{r} - \left(1 + \frac{3}{m} \right)\left(\frac{\rho \;r\;\omega ^2}{8g} \right)}$

(17)

A Solid Disc

Since the Stresses can not be infinite at the centre of a solid Disc, B must be zero.

If R is the outside radius of the disc then rewriting equations (14) and (15):

$p = 0 = A - \left(3 + \frac{1}{m} \right)\left(\frac{\rho \,R^2\,\omega ^2}{8g} \right)$

(18)

From Which:

$p = \left(\frac{\rho \;\omega ^2}{8g} \right)\left(3 + \frac{1}{m} \right)\left(R^2 - r^2 \right)$

(19)

$And\;\;\;\;\;f = \left(\frac{\rho \;\omega ^2}{8g} \right)\left[ \left(3 + \frac{1}{m} \right)R^2\:-\:\left(1 + \frac{3}{m} \right)r^2 \right]$

(20)

At the centre r = 0 and so:

$p = f = \left(3 + \frac{1}{m} \right)\left(\frac{\rho \;\omega ^2\,R^2}{8g} \right)$

(21)

This is the Maximum Stress.

At the outside :

MISSING IMAGE!

23287/Rotating-Discs-and-Cylinders-3-0002.png cannot be found in /users/23287/Rotating-Discs-and-Cylinders-3-0002.png. Please contact the submission author.

$f = \left(1 - \frac{1}{m} \right)\left(\frac{\rho \,\omega ^2\,r^2}{g} \right)$

(22)

For a value of $\inline \displaystyle \frac{1}{m} = 0.3$

$\hat{f} = \left(\frac{3.3}{8} \right)\left(\frac{\rho \,\omega ^2\,R^2}{g} \right) = 0.41\times \frac{\rho \,\omega ^2\,R^2}{g}\;\;\;\;(At\;the\;centre)$

(23)

And at the outside:

$f = \frac{0.7}{4}\times \frac{\rho \,\omega ^2\,R^2}{g} = 0.425\;\hat{f}$

(24)

The variations of the Hoop and Radial Stresses with Radius are shown on the diagram.

A Disc With A Central Hole

The Radial Stress is Zero at both the inner and outer radii. If the value of these is $\inline \displaystyle R_1\;\;and\;\;R_2$ , then using equation (14)

$0 = A\;-= \frac{B}{R_1^2} - \left(3 + \frac{1}{m} \right)\left(\frac{\rho \;R_1^2\,\omega ^2}{ 8g }\right)$

(25)

$0 = A\;-= \frac{B}{R_2^2} - \left(3 + \frac{1}{m} \right)\left(\frac{\rho \;R_2^2\,\omega ^2}{ 8g }\right)$

(26)

Solving the above two equations for A and B:

$B = \left(3 + \frac{1}{m} \right)\left(\frac{\rho \,\omega ^2}{8g} \right)\left(R_1^2\,R_2^2 \right)$

(27)

$A = \left(3 + \frac{1}{m} \right)\left(\frac{\rho \,\omega ^2}{8g} \right)\left(R_1^2 + R_2^2 \right)$

(28)

$Thus,\;\;\;\;\;\;p = \left(3 + \frac{1}{m} \right)\left(\frac{\rho \,\omega ^2}{8g} \right)\left(R_1^2 + R_2^2 - \frac{R_1^2\,R_2^2}{r^2} - r^2\right)$

(29)

Substituting from equation(15)

$And\;\;\;\;\;f = \left(\frac{\rho \;\omega ^2}{8g} \right)\left[\left(3 + \frac{1}{m} \right)\left(R_1^2 + R_2^2 + \frac{R_1^2\,R_2^2}{r^2} \right) - \left(1 + \frac{3}{m} \right)r^2 \right]$

(30)

p is a maximum when $\inline \displaystyle r = \sqrt{R_1\,R_2}$

$\hat{p} = \left(3 + \frac{1}{m} \right)\left(\frac{\rho \;\omega ^2}{8g} \right)\left(R_2 - R_1 \right)^2$

(31)

$\hat{f} = \left(\frac{\rho \;\omega ^2}{4g} \right)\left[\left(1 - \frac{1}{m} \right)R_1^2 + \left( 3 + \frac{1}{m} \right)R_2^2 \right]$

(32)

Note that if $\inline \displaystyle R_1$ is very small $\inline \displaystyle \hat{f}\rightarrow \left(3 + \frac{1 } {m} \right)\left(\frac{\rho \;\omega ^2\;R_2^2}{4g} \right)$ which is tweiew the value which would be found in a solid disc.

At the outside

$f = \left(\frac{\rho \;\psi ^2}{4g} \right)\left[\left(3 + \frac{1}{m} \right)R_1^2 + \left(1 - \frac{1}{m} \right)R_2^2 \right]$

(33)

$If\;\;\;R_1\rightarrow R_2 = R\;\;\;\;Then\;\;\;\;\hat{f}\rightarrow \frac{\rho \;\omega ^2\;R^2}{g}$

(34)

MISSING IMAGE!

23287/Rotating-Discs-and-Cylinders-4-0003.png cannot be found in /users/23287/Rotating-Discs-and-Cylinders-4-0003.png. Please contact the submission author.

As in the case of a thin rotating cylinder. The variations in Stress are shown on the diagram.

Example:

[imperial]

Example - Stress in a hollow uniform disc

Problem

A thin uniform disc of 10 in. diameter with a central hole of 2 in. , runs at 10,000 r.p.m. Calculate the maximum Principal Stress and the maximum Shear Stress in the disc. Take $\frac{1}{m}\;\;\;=\;\;0.3\;$ and Density = 0.28 lb.in.^-3

Workings

The maximum Principal Stress will be at the inside and is given by equation (31)

$\hat{f}\;=\;\frac{0.28}{4\times 32.2\times 12}\left(\frac{10,000\times 2\pi }{60} \right)^2\;\left(0.7\times 1^2\;+\;3.3\times 5^2 \right)$

(1)

$=\;16,500\;lb.in^{-2}$

(2)

The maximum Shearing Stress at any radius is given by:

$\frac{1}{2}(f\;-\;p)\;=\;\left(\frac{\rho \;\omega ^2}{8g} \right)\left[\left(3\;+\;\frac{1}{m} \right)\frac{R_1^2\;R_2^2}{r^2} \;+\;\left(1\;-\;\frac{1}{m} \right)r^2\right]$

(3)

It can be seen from the diagram that the greatest Stress difference occurs at

$r\;=\;R_1$

(4)

and the Maximum Shearing Stress is:

$\frac{0.28}{8\times 32.2\times 12}\left(\frac{10.000\times 2\pi }{60} \right)^2\left(3.3\times\frac{1^2\times5^2}{1^2}\;+\;0.7\times 1^2 \right)\;=\;8250\;lb.in.^{-2}$

(5)

Solution

The maximum Principal Stress = 16,500 lb.in^-2

The maximum Shear Stress = 8250 lb.in.^-2

Long Cylinders

Assume that the Longitudinal Stress is $\inline \displaystyle f_1$ and that the Longitudinal Strain e is constant, i.e., the cross sections remain plane which must be true away from the ends. The analysis is similar to that used for a rotating disc and the Strain Equations are:

$E\,e = f_1 - \left(\frac{1}{m} \right)\left(f + p \right)$

(35)

$E\;\frac{du}{dr} = p - \left(\frac{1}{m}\right)\left(f + f_1$

(36)

$E\;\frac{u}{r} = f - \left(\frac{1}{m}\right)\left(p + f_1 \right)$

(37)

Using Equations (40) and (41) eliminate $\inline \displaystyle \frac{du}{dr}$

From Equation (41)

$E\,.\,\frac{du}{dr} = f - \left(\frac{1}{m} \right)\left(p + f_1 \right) + \left[\frac{df}{dr} - \left(\frac{1}{m} \right)\left(\frac{dp}{dr} \right) - \left(\frac{1}{m}\right)\left(\frac{df_1}{dr} \right) \right]$

(38)

From Equation (40)

$= p - \left(\frac{1}{m} \right)\left(f + f_1 \right)$

(39)

$\therefore\;\;\;\;\;\;(f - p)\left(1 + \frac{1}{m} \right) + r\times \frac{df}{dr}\;\;\left(\frac{r}{m} \right)\left(\frac{dp}{dr} \right) - \left(\frac{r}{m} \right)\left( \right) = 0$

(40)

Substituting $\inline \displaystyle \frac{df_1}{dr} = \left(\frac{1}{m} \right)\left(\frac{df}{dr} + \frac{dp}{dr} \right)$ which was obtained from equation (39)

$(f - p)\left(1 + \frac{1}{m} \right) + r\times \frac{df}{dr}\left(1 - \frac{1}{m^2} \right) - \left(\frac{r}{m} \right)\left(1 + \frac{1}{m}\right)\left(\frac{dp}{dr} \right) = 0$

(41)

$Or\;\;\;\;\;f - p - r\times \left(1 - \frac{1}{m} \right)\left(\frac{dp}{dr} \right) = 0$

(42)

The equilibrium equation is as equation (8) and subtracting equation (46) we get.

$- r\left(1 - \frac{1}{m} \right)\left(\frac{df}{dr} \right) - r\left(1 - \frac{1}{m} \right)\left(\frac{dp}{fdr} \right) = \frac{\rho \times r\times \omega ^2}{g}$

(43)

$Or\;\;\;\;\;\frac{df}{dr} + \frac{dp}{dr} = \frac{\rho \times r\times \omega ^2}{\left(1 - \frac{1}{m} \right)g}$

(44)

Integrating:

$Or\;\;\;\;\;f + p = \frac{\rho \times r^2\times \omega ^2}{2\left(1 - \frac{1}{m} \right)g} + 2A$

(45)

This can be compared to equation (11) which is for a thin disc. It can be seen that the result for a long cylinder can be obtained from those for a thin disc by writing $\inline \displaystyle \frac{1}{1 - \frac{1}{m}}\;instead\;of\;1 + \frac{1}{m}$

Solid Cylinder

The maximum Stress occcurs at the centre where p and f are equal

$\hat{f} = \frac{3 - \frac{2}{m}}{1 - \frac{1}{m}}\times \frac{\rho \times\omega ^2\times R^2}{8g}$

(46)

$If\;\;\;\;\;\frac{1}{m} = 0.3$

(47)

$Then\;\;\;\;\;\hat{f} = \frac{2.4}{5.6}\times \frac{\rho \times\omega ^2\times R^2}{8g} = 0.43\;\frac{\rho \times \omega ^2\times R^2}{8g}$

(48)

(This compares with $\inline \displaystyle 0.41\times\frac{\rho \times \omega ^2\times R^2}{8g}$ for a solid disc)

Hollow Cylinder

$\inline \displaystyle \hat{p} = \left(\frac{3 - \frac{2}{m}}{1 - \frac{1}{m}} \right)\times \frac{\rho \times \omega ^2}{8g}\times\left(R_2 - R_1 \right)^2$

$\inline \displaystyle \hat{f} = \frac{\rho \times \omega ^2}{4g\left(1 - \frac{1}{m} \right)}\left[\left(1 - \frac{2}{m}\right)R_1^2 + \left(3 - \frac{2}{m} \right) R_2^2 \right]$

These values do not differ greatly from those for a thin disc.

A Disc Of Uniform Strength

Consider the condition of equal stress at all radii, i.e. $\inline \displaystyle p = f = Constant$ .

MISSING IMAGE!

23287/Rotating-Discs-and-Cylinders-5.png cannot be found in /users/23287/Rotating-Discs-and-Cylinders-5.png. Please contact the submission author.

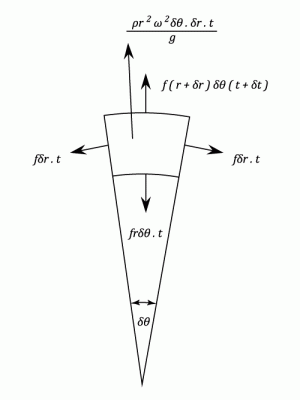

Le $\inline \displaystyle t$ be the thickness of the disc at a radius $\inline \displaystyle r$ and

assume that the thickness will be $\inline \displaystyle t + \delta t$ at radius $\inline \displaystyle r + \delta r$

The mass of the element will be approximately

$\rho \times r\times \delta \theta \times \delta r\times \frac{t}{g}$

(49)

And the centrifugal Force will be:

$\rho \times r^2\times\omega ^2\times \delta \theta \times \delta r\times \frac{t}{g}$

(50)

Hence the equilibrium Equation is:

$2\;f\;\delta r\times \sin\frac{1}{2}\delta \theta + f\;r\;\delta \theta \times t = f(r + \delta r)\;\delta \theta \;(t + \delta t) + \frac{\rho \;r^2\;\psi ^2\;t\;dr}{g}$

(51)

Which in the limit is:

$f\;t\times dr = f\;r\times dt + f\;t\times dr + \frac{\rho\;\omega^2\;t\times dr}{g}$

(52)

Integrating:

$\lnt\;= - \frac{\rho \;r^2\;\omega ^2}{2\;f\;g} + Constant$

(53)

$Or\;\;\;\;\;\;t = A\;e^{- \frac{p\;r^2\;\omega ^2}{2\;f\;g}}$

(54)

$Or\;\;\;\;\;\;t = t_0\;e^{- \frac{p\;r^2\;\omega ^2}{2\;f\;g}}$

(55)

Example:

Example - A Disc Of Uniform Strength

Problem

A Turbine rotor Disc is 24 in. Diameter at the blade ring and is keyed to a 2 in diameter shaft. If the minimum thickness is 3/8 in. what should be the thickness at the shaft for a uniform stress of 30,000 lb./in². aqt 10,000 r.p.m.? Density of material = 0.28 lb./in³.

Workings

$T\;=\;A\;e^{-\frac{\rho \,r^2\,\omega ^2}{2f\;g}}$

(6)

$At\;\;\;\;\;\;\;r\;=\;12\;in.$

(7)

$t\;=\;\frac{3}{8}\;=\;A\;e^{-\rho \,\omega ^2\times\frac{144}{2f\,g}}$

(8)

$At\;\;\;\;\;\;\;r\;=\;1\;in.$

(9)

$t\;=\;A\;e^{-\frac{\rho \,\omega ^2}{2f\,g}}\;=\;\frac{3}{8}\;e^{\rho \,\omega ^2\times \frac{143}{2f\,g}}$

(10)

$Where\;\;\;\;\;\rho \;\omega ^2\times \frac{143}{2f\;g}\;=\;0.28\left(\frac{10,000\pi }{30} \right)^2\times \frac{143}{2}\times30,000\times 32.2\times 12$

(11)

$=\;1.89$

(12)

$\therefore\;\;\;\;\;\;t\;=\;\frac{3}{8}\;e^{1.89}\;\;=\;2.5\;inches$

(13)

Solution

The required thickness = 2.5 inches
