Gyroscopes

An analysis of gyroscopic couples.
+ View other versions (5)

Key Facts

Gyroscopic Couple: The rate of change of angular momentum (\inline \tau) = \inline I\omega\Omega (In the limit).
  • \inline I = Moment of Inertia.
  • \inline \omega = Angular velocity
  • \inline \Omega = Angular velocity of precession.

Introduction

Whilst Gyroscopes are used extensively in aircraft instrumentation and have been utilised in monorail trains, the everyday impact of gyroscopic forces on our lives is unappreciated and significant.

The simple example is a child's top which would not work but for the gyroscopic couple which keeps it upright. On a slightly different level, the gyroscopic couple helps us to keep a bicycle upright. It is interesting and instructive to remove a bicycle wheel from its frame, hold it by the axle, spin the wheel and then try to change the orientation of the axle. The force required to do so is considerable!

However, these gyroscopic forces are not always beneficial, and it will be shown that the effect on the wheels of a car rounding a corner are to increase the tendency for the vehicle to turn over.

Angular Displacement, Velocity And Acceleration

Note: Without an understanding of Angular movement it is difficult to understand Gyroscopic Couples. For this reason the paragraph on Angular Displacement, Velocity, and Acceleration shown in "The Theory of Machines - Mechanisms", has been reproduced here.

Let:
  • The line \inline OP in the diagram rotates around \inline O
  • Its inclination relative to \inline OX be \inline \phi radians.
MISSING IMAGE!

23287/Gyroscopes-0001-12.png cannot be found in /users/23287/Gyroscopes-0001-12.png. Please contact the submission author.

Then if after a short period of time the line has moved to lie along \inline OQ, then the angle \inline \delta\theta is the Angular Displacement of the line.

Angular Displacement

In order to completely specify angular displacement by a vector, the vector must fix:-

  • The direction of the axis of rotation in space.
  • The sense of the angular displacement, i.e., whether clockwise or anti-clockwise.
  • The magnitude of the angular displacement.

In order to fix the vector, it can be drawn at right angles to the plane in which the angular displacement takes place; say along the axis of rotation, and its length will be (to a convenient scale) the magnitude of the displacement.

The conventional way of representing the sense of the vector is to use the right-hand screw rule, i.e.,

  • The arrow head points along the vector in the same direction as a right handed screw would move relative to a fixed nut.
  • Using the above convention, the angular displacement \inline \delta\theta shown in the diagram would be represented by a vector perpendicular to the plane of the screen and the arrow head would point away from the screen.

Angular Velocity

Angular Velocity is defined as the rate of change of angular displacement with respect to time. As angular velocity has both magnitude and direction, it is a vector quantity, and may be represented in the same way as angular displacement.

  • If the direction of the angular displacement vector is constant, i.e., the plane of the angular displacement does not change its direction, then the angular velocity is merely the change in magnitude of the angular displacement with respect to time.

Angular Acceleration

Angular Acceleration is defined as the rate of change of angular velocity with respect to time. It is a Vector quantity. The direction of the acceleration vector is not necessarily the same as the displacement and velocity vectors.

Assume that at a given instant a disc is spinning with an angular velocity of \inline \omegain a plane at right angles to the screen, and that after a short interval of \inline \delta tits speed has increased to \inline \omega + \delta\omega.

MISSING IMAGE!

23287/Gyroscopes-0002.png cannot be found in /users/23287/Gyroscopes-0002.png. Please contact the submission author.

Then applying the right-hand rule:

  • The angular velocities at the two instants are represented by the vectors \inline oa and \inline ob.
  • The change of angular velocity in a time of \inline \delta t is represented by the vector \inline ab. This can be resolved into two components \inline ac and \inline cb which are respectively parallel and perpendicular to \inline oa.

Hence,

  • The component parallel to \inline oa is given by:\inline \displaystyle \alpha_T=\frac{d\omega}{dt}
  • The component perpendicular to \inline oa is given by: \inline \displaystyle \alpha_C=\omega\;\frac{d\theta}{dt}=\omega\times \omega_P

Note:

  • \inline \omega_P is the rate of change of direction of the vector \inline oa.
  • \inline \alpha_T is the rate of change of the magnitude of velocity \inline \omega of the disc.
  • \inline \alpha_C is the rate at which the direction of \inline \omega, and therefore the plane of the rotation of the disc, is changing.
  • The total angular acceleration of the disc is the vector sum of \inline \alpha_T and \inline \alpha_C.

Two particular cases should be noted:

  • If the plane of rotation of the disc is constant in direction, then \inline \omega_P is zero and the component of acceleration \inline \alpha_C is zero.
  • If the angular acceleration of the disc is constant in magnitude but the plane of rotation changes direction at the rate \inline \omega_P radians per second, then the angular acceleration of the disc is given by:
\alpha_C=\omega\;\frac{d\theta}{dt}=\omega\times \omega_P

  • The direction of this acceleration vector is at right angles to the angular velocity vector and lies in the plane of motion of the velocity vector.

Gyroscopic Couple

If a uniform disc of polar moment of inertia \inline I is rotated about its axis with an angular velocity \inline \omega, its Angular Momentum \inline I\;\omega is a vector and can be represented in diagram (c) by the line up which is drawn in the direction of the axis of rotation. The sense of the rotation is clockwise when looking in the direction of the arrow.

MISSING IMAGE!

23287/Gyroscopes-0001-13.png cannot be found in /users/23287/Gyroscopes-0001-13.png. Please contact the submission author.

If now the axis of rotation is precessing with a uniform angular velocity \inline \Omega about an axis perpendicular to that of \inline  \omega, then after a time \inline \delta t the axis of rotation will have turned through an angle \inline \delta \theta=\Omega t and the momentum vector will be \inline oq.
The Gyroscopic Couple \inline \tau is given by:

\inline \tau= The rate of change of angular momentum =\inline \displaystyle\frac{pq}{\delta t}= \displaystyle\frac{I\,\omega\,\delta\theta}{\delta t}=I\,\omega\,\Omega (In the limit)

  • The direction of the couple acting on the gyroscope is that of a clockwise rotation when looking in the direction \inline pq.
  • In the limit, the direction of the couple is perpendicular to the axes of both \inline \omega and \inline \Omega
  • The reaction couple exerted by the gyroscope on its frame is in the reverse sense (It is advisable to draw the vector triangle \inline opq in each case).

Example:
[imperial]
Example - Example 1
Problem

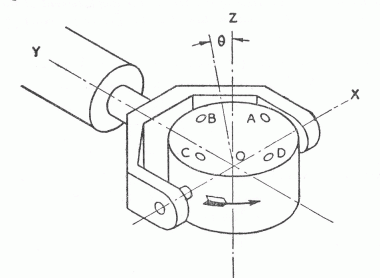

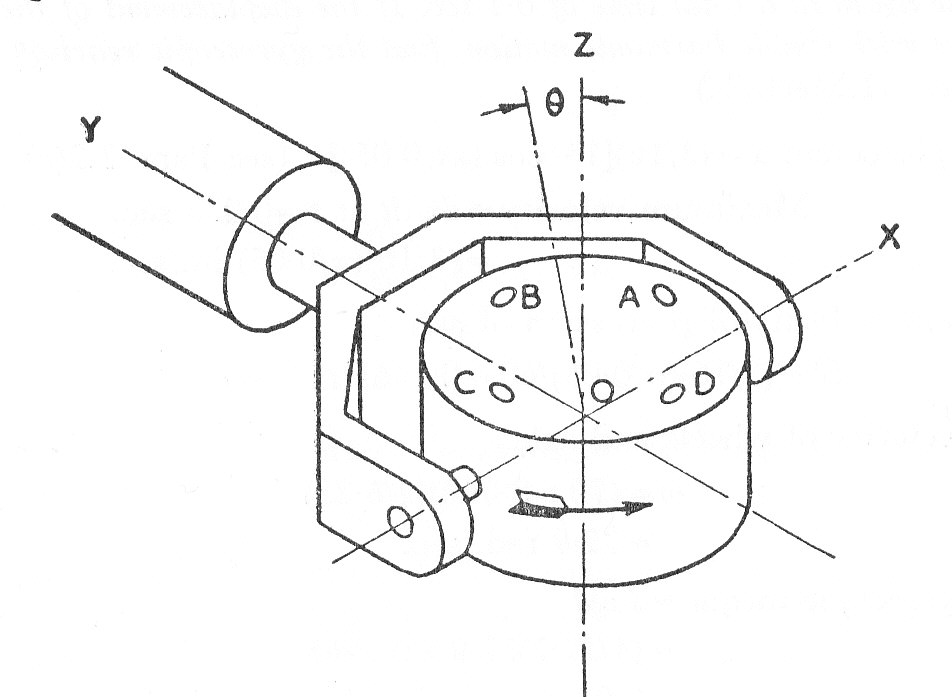

The diagram shows the Gyro unit of an aircraft instrument in which the rotor is carried in a closed casing mounted in bearings so that its axis is normally vertical but free to take up any direction.

13108/img_0002_12.jpg
+

The rotor speed is maintained constant in an anti-clockwise direction, when seen from the top, by air jets inside the casing which impinge onto its slotted periphery. The used air may then leave the casing by the four orifices indicated, these are uncovered as required by gravity controlled vanes. If the rotor axis is tilted through an angle in the XOZ plane, explain which orifice must be uncovered so that the reaction from the jet tends to restore the axis to the vertical.

If this force is 0.0004 lb. at a distance of 0.825 in. from and the wheel is equivalent to a uniform solid disc 1.75 in. in diameter weighing 0.3 lb. and running at 9000 r.p.m., find the time required for the axle to return to the vertical is is
Workings
The axis of rotation has to precess anti-clockwise about when seen from the left. The Gyroscopic torque on the rotor must be anti-clockwise about when seen from the right and this can be achieved by opening vent .

The torque applied =

Re-arranging to give the angular velocity of precession gives:-

The time to precess

Solution
  • The time required is
